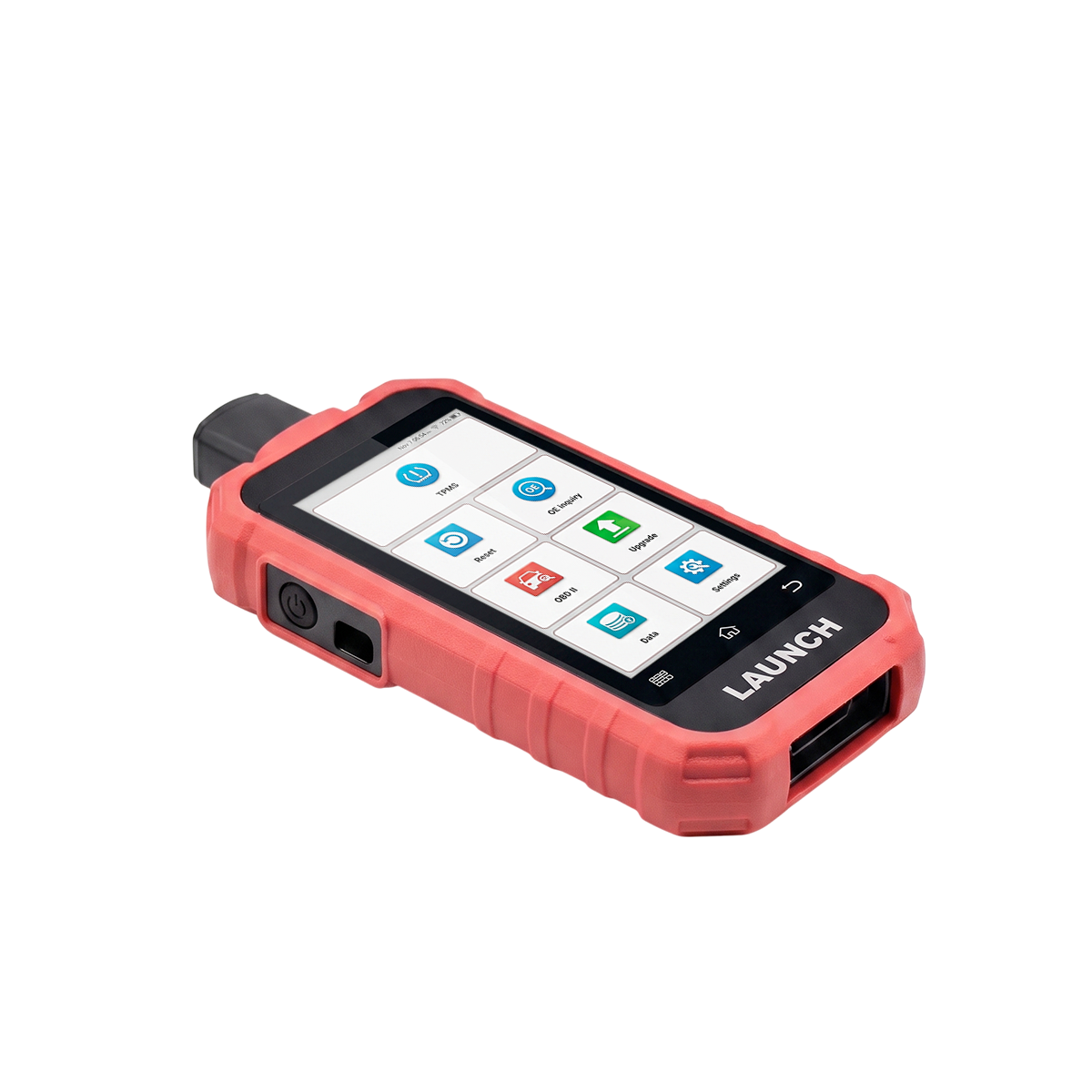

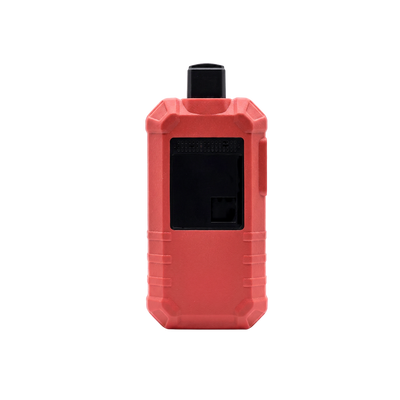

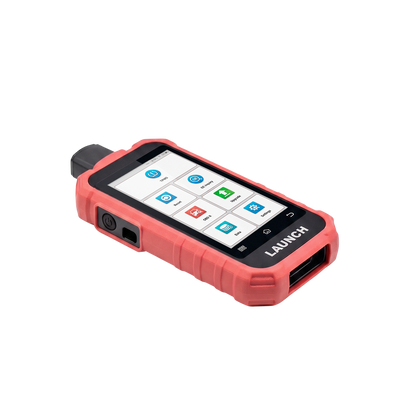

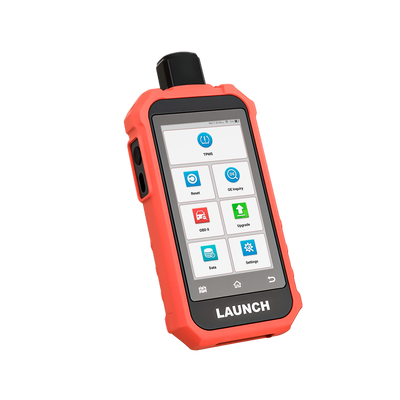

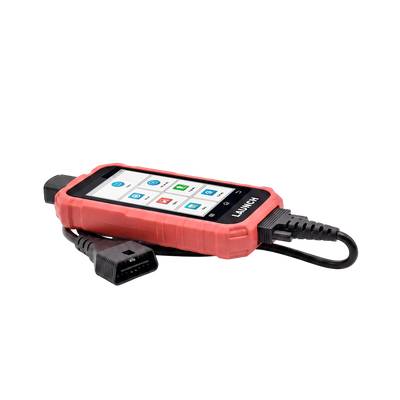

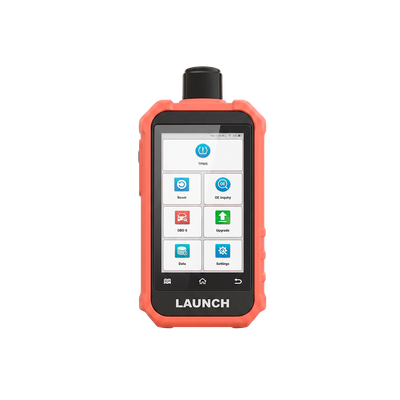

Launch CRT 511s V2 TPMS Scanner

The Creader TPMS 511S V2 Launch is a professional, standalone tool for TPMS sensor diagnosis, activation, relearning, and programming. Developed for workshops, auto centers, and tire shops, it supports over 98% of vehicles on the market, making tire pressure monitoring services faster, more accurate, and more profitable.

With an Android system, 5" screen, Wi-Fi, 6,000 mAh battery, and 2 + 32 GB memory, the equipment can read information such as tire pressure, temperature, and sensor battery status, as well as locate OE sensors and generate professional reports for customers.

In addition to TPMS functions, the Creader TPMS 511S V2 features 12 OBD service functions, including oil reset, brake reset, battery adaptation, injector coding, DPF, ABS, immobilizer, throttle body, steering angle sensor, sunroof, seat memory, and window reset.

In practice, it's a complete solution for those who want to expand workshop services, reduce manual diagnostics, deliver more professional reports, and turn TPMS into a new revenue opportunity.

Key Functions:
The Launch Creader TPMS 511S V2 can perform the main operations related to the tire pressure monitoring system:

TPMS sensor activation;
Tire pressure reading;
Internal tire temperature reading;
Sensor battery status check;
Reading, copying, and writing sensor IDs;
Universal sensor programming;
OBD sensor relearning;
Consultation of OE diagrams and TPMS technical information;
Guided on-screen procedure;
Professional TPMS report generation.

Technical Data:
Screen: 5”, 720 x 1280 dpi
OBD-II input voltage: 9 to 18 V
Operating temperature: 0 to 50 °C
Storage temperature: -20 to 70 °C
Wi-Fi: 2.4 GHz
Memory: 2 + 32 GB
Battery: 6,000 mAh
Interface: TF card / USB
Dimensions: 224 x 97 x 70 mm
