2-channel oscilloscope w/ multimeter Launch EM101N

Detection and maintenance of the electrical systems of new energy vehicles are essential. By visualizing waveform diagrams, it is possible to optimize and streamline the diagnostic and maintenance process.

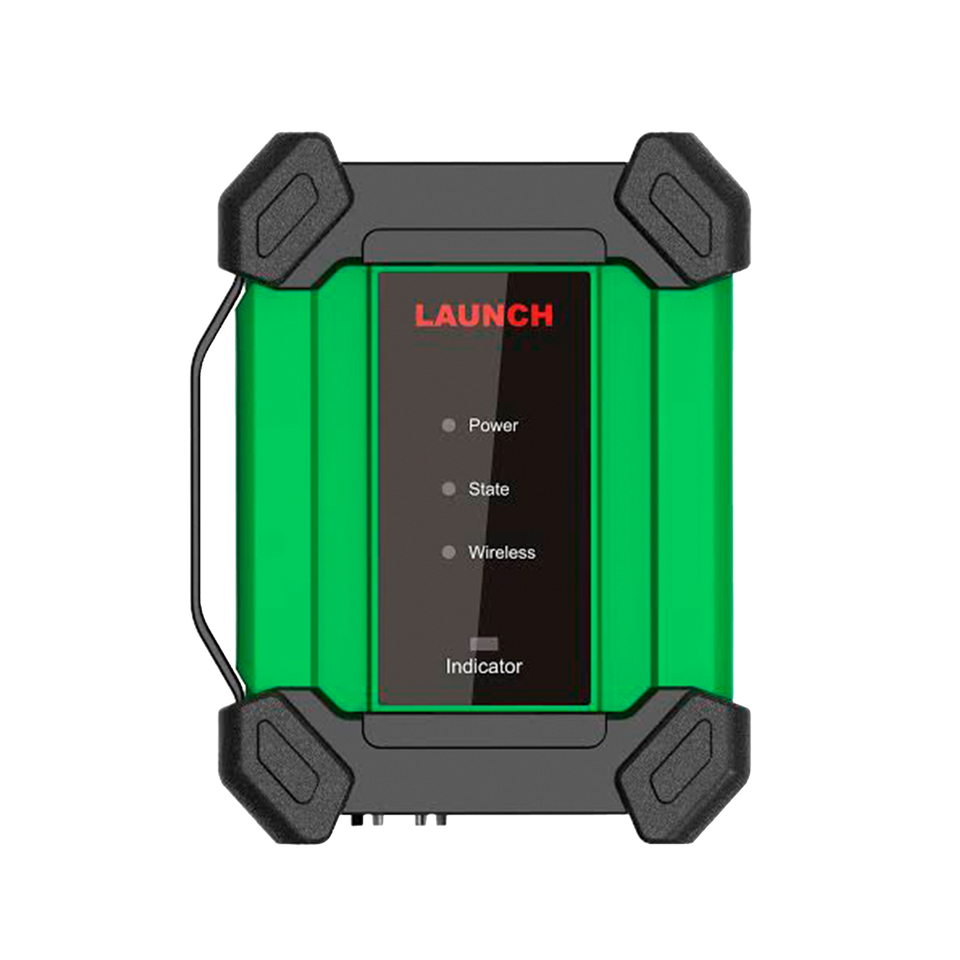

The LAUNCH EM101N integrates the functions of a digital multimeter and a two-channel oscilloscope into a single device, offering practicality and versatility for different automotive diagnostic applications.

The new diagnostic app features an intuitive and easy-to-use interface, and allows you to save and open waveforms locally, facilitating the analysis and comparison of signals.

Key features of the LAUNCH EM101N

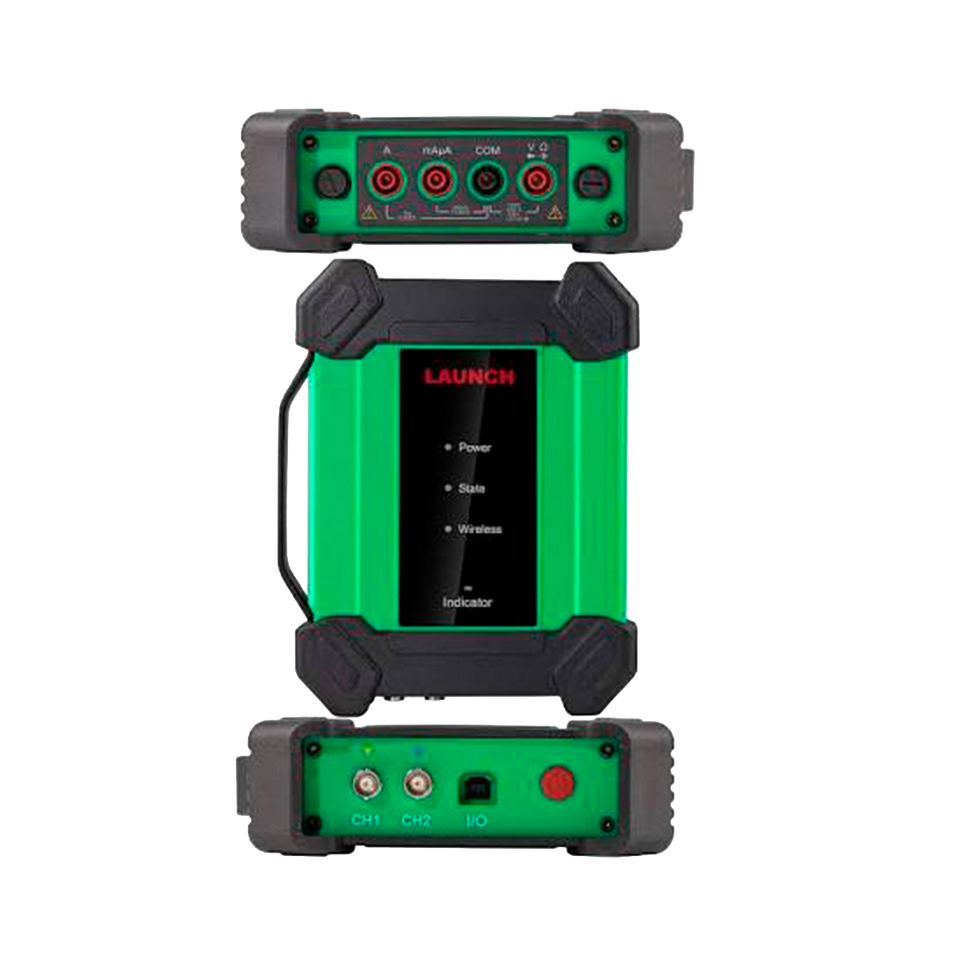

1. Combines the functionality of a two-channel oscilloscope and a digital multimeter in a single device.
2. Features a drop-resistant rubber cover, increasing equipment protection. The unique fuse-slot system makes replacement easy.
3. Can be used with X-431 diagnostic tools, allowing for wireless or wired connection, as needed.
4. When used with X-431 diagnostic tools, it features a new interface (UI) that offers three display modes, allowing you to switch between them freely.
5. The equipment comes with various accessories, including test probes, multimeter test leads, alligator clips, and oscilloscope channel test leads.

Technical specifications

DC Voltage: auto-ranging, ±600 V measurement range

AC Voltage: auto-ranging, ±600 V measurement range

DC Current: auto-ranging, ±10 A measurement range
For current measurements in higher ranges, an external sensor must be connected.

AC Current: auto-ranging, ±10 A measurement range. Mean value measurement.
For current measurements in higher ranges, an external sensor must be connected.

Resistance: auto-ranging, 0 to 6 MO measurement range

Continuity test: emits an audible signal when resistance is less than 30 O

Diode: 0.5 V to 2.0 V

Battery capacity: 3,100 mAh

Bandwidth: 10 MHz

Channels: 2 analog channels

Maximum real-time sampling rate: 50 MHz/s

Time base: 1 µs/div to 10 s/div, in 1-2-5 steps

Sampling modes: normal sampling, peak detection, and average

Buffer memory: 1 M

Input coupling: DC, AC, and ground

Input impedance: 1 MO ±2%, in parallel with 15 pF ±5 pF

Vertical sensitivity: 2 mV/div to 5 V/div

Vertical resolution: 8 bits

Maximum input voltage: 40 V peak (peak DC + AC value)

Probe attenuation factor: 1X, 10X, and 100X
Requires probe support.

Trigger types: edge trigger and pulse width trigger

Trigger modes: auto, normal, and single

Automatic measurements: peak-to-peak value, average value, maximum value, minimum value, top value, bottom value, frequency, and period.

Package contents

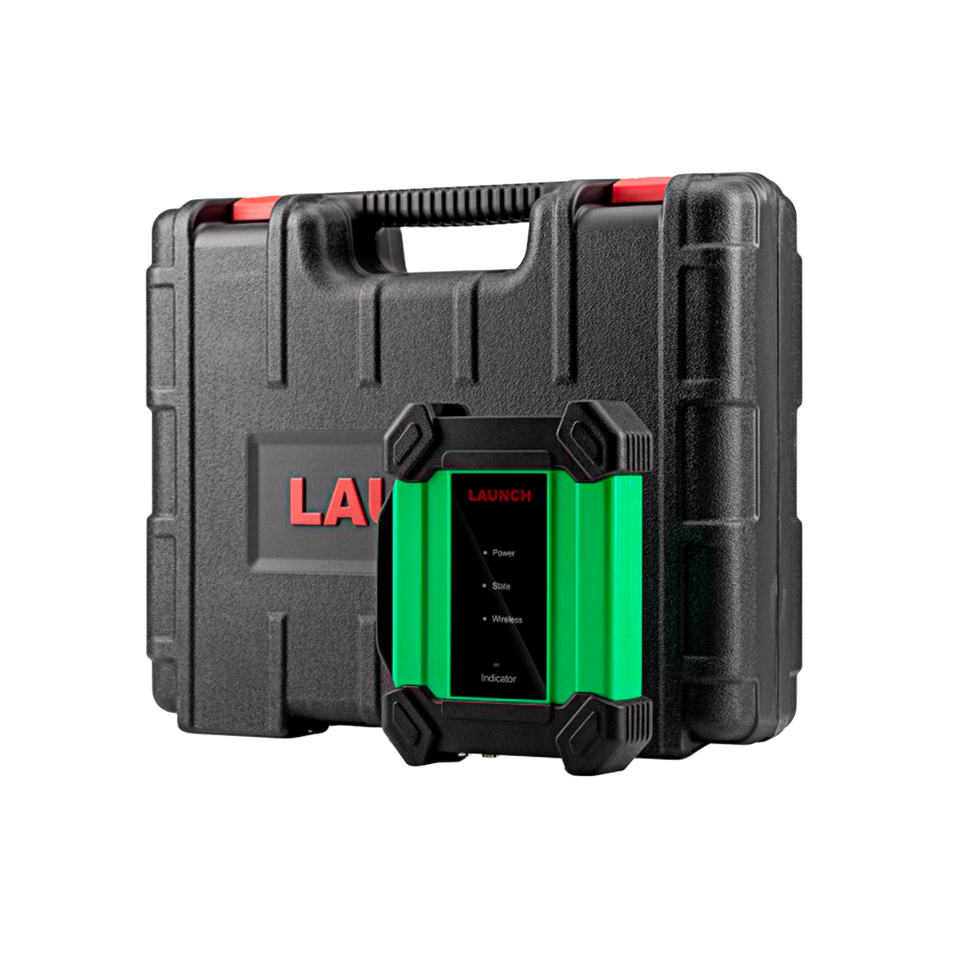

• 1x EM101N main unit
• 2x BNC to 4 mm test leads
• 2x Multimeter test probes
• 2x Multimeter leads (black + red)
• 4x Alligator clips
• 1x Black probe tip kit (5 tips + 20 pins + 2 caps)
• 1x USB Type-A to Type-B cable
• 1x User manual
• 1x UK standard power plug
• 1x EU standard power plug
• 1x AU standard power plug
• 1x US standard power adapter
